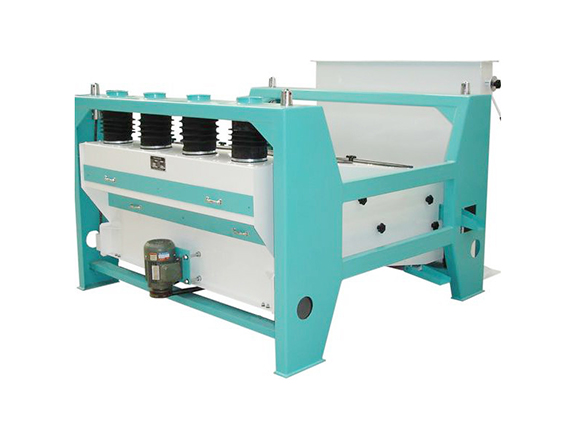

TQLM series rotary sieve classifier
author: time:2019-11-29

  Explain:

  It is mainly used for raw material handling or grading in flour milling, feed, rice milling, chemical engineering, oil expression and other industries. Impurities among many kinds of particle grains such as wheat, corn, rice, oil-bearing crops can be removed by replacing screen pieces with different bore diameters.

  Characteristics:

  1.It is featured with wide sieve, large flow and satisfactory impurity removal effect

  2.It can operate steadily, with low noise

  3.It is equipped with an air-suction device, and there is no flying dust.

  4.High-elasticity rubber ball is adopted, and the percentage of plugged hole is low

  Technical parameters:

Spec. & model

Output (t/h)

Power (kw)

Speed (r/min)

Air suction amount (m³/h)

Turning radius of screen body (mm)

Mass (kg)

Boundary dimension (L × W × H)

TQLM63

3.5

0.55

386

1090

6~7.5

500

1355×936×946

TQLM80

4~6

0.75

386

1090

6~7.5

630

2120×1265×1645

TQLM100

6~9

0.75

386

1190

6~7.5

700

2120×1465×1645

TQLM125

7~10

1.1

386

1290

6~7.5

800

2120×1715×1645

TQLM150

11~16

1.1

386

3380

6~7.5

885

2146×2042×1359
