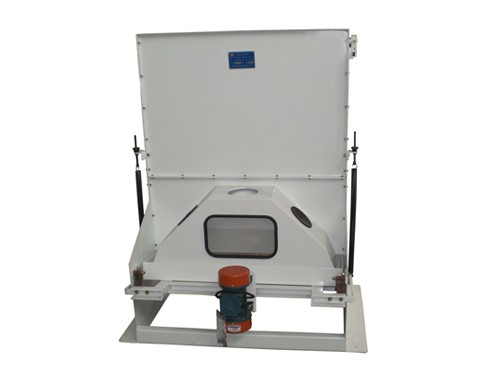

該機在各糧食加工廠及飼料廠中可作為原料清理的設備之一，它適用于從小麥、黑麥、燕麥、大麥、大豆、花生、谷物、可可豆等各類顆粒物料中分離出灰塵、皮殼、碎粒及輕雜質。
This series of equipment, as one of the equipment for cleaning of raw materials in food and feed processing plants, is used to take dust, husks, broken grains and light impurities out of wheat, rye, oats, barley, soybeans, peanuts, cereal, cocoa beans and other particle materials.
特點 Characteristics：
1、振動喂料裝置使物料沿風道的整個寬度上形成薄的物料層進入設備；
Vibrating feeding device makes the materials enter into the equipment by forming a thin material layer along the transverse direction of the air channel;
2、風道的大小由調節板控制，可調節空氣的速度，從而各種不同的物料都可以獲得好的分離效果，由于下調節可以移動，便于內部清理；
The opening of air channel is controlled by an adjusting plate. The air speed can be adjusted so that the best separation effect of various materials can be achieved. The lower adjusting element is mobile, which provides convenience for internal cleaning;
3、通過有機玻璃觀察窗，可方便的觀察物料的分離效果，從而更加方便設備的調節
The separation effect of materials can be observed easily via the PMMA inspection window, which, therefore, provides convenience for equipment adjustment
技術參數：
Technical parameters:
|
項目型號 Item & Model |
產量（t/h） Output (t/h) |
||||||
|
小麥 Wheat |
谷物（玉米） Cereal (corn) |
||||||
|
分離雛縮皮 Separation of shrunken husks |
分離灰塵及外皮 Separation of dust & husks |
外皮+灰塵 Husks + dust |
分離外皮 Husk separation |
||||
|
輕顆粒 Light grains |
篩下物 Screen underflow |
5目以上 Over 5 meshes |
5~10目 5~10 meshes |
||||
|
TFDZ75G |
3.1-4.7 |
5.9-8.9 |
5.9-8.9 |
3.1-4.7 |
2.4-3.5 |
3.0-4.5 |
1.5-2.3 |
|
TFDZ100G |
4.7-6.2 |
8.9-11.8 |
6.9-11.8 |
4.7-6.2 |
3.6-4.8 |
4.5-6.0 |
2.3-3.1 |
|
TFDZ150G |
7.2-7.7 |
11.5-13.5 |
8.9-13.5 |
7.2-7.7 |
6.3-7.2 |
6.0-7.5 |
3.1-3.9 |
|
TFDZ180G |
8.5-11.5 |
16.2-21.5 |
12.5-21.5 |
8.5-11.2 |
6.5-8.6 |
8.1-10.8 |
4.1-5.6 |
|
TFDZ200G |
9.4-12.4 |
17.8-23.6 |
13.8-23.6 |
9.4-12.4 |
7.2-9.6 |
9.0-12 |
4.6-6.2 |
|
大風量（m³/h）Max. air volume (m³/h) |
|||||||
|
TFDZ75G |
3000 |
2100 |
3600 |
4500 |
1540 |
2440 |
2120 |
|
TFDZ100G |
4000 |
2800 |
4800 |
6000 |
2040 |
3240 |
2820 |
|
TFDZ150G |
6000 |
4200 |
7200 |
9000 |
3050 |
4900 |
4230 |
|
TFDZ180G |
7200 |
5040 |
8640 |
10800 |
3670 |
5830 |
5680 |
|
TFDZ200G |
8000 |
5600 |
9600 |
12000 |
4080 |
6480 |
5640 |
|
型號 Model |
振動電機型號 Type of vibrating motor |
功率 Power (kw) |
設備阻力（Pa） Equipment resistance (Pa) |
質量 Mass (kg) |
外形尺寸（長×寬×高）mm Boundary dimension (L × W × H) mm |
|
TFDZ75G |
YZU-2-4A |
0.12 |
150 |
160 |
850×825×1440 |
|
TFDZ100G |
YZU-2-4A |
0.12 |
150 |
190 |
1205×920×1445 |
|
TFDZ150G |
YZU-2-4A |
0.12 |
150 |
260 |
1650×965×1445 |
|
TFDZ180G |
YZU-2-4A |
0.12 |
150 |
300 |
1950×965×1445 |
|
TFDZ200G |
YZU-2-4A |
0.25 |
150 |
350 |
2150×935×1445 |
